.25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles

SKU
PTLS01
In stock
$1,228.00
Product Options Color / Finish Options
Wishlist Icon ADD TO PROJECTS FOLDER Add to Project Folder
Locations Icon Print Page
Locations Icon Find a Showroom

Color / Finish Options

  • Antique Brass Antique Brass
  • Antique Copper Antique Copper
  • Architectural Bronze Architectural Bronze
  • Burnished Brass Burnished Brass
  • Burnished Nickel Burnished Nickel
  • Carbon Carbon
  • Chrome Chrome
  • Gold Gold
  • Matte Gold Matte Gold
  • Matte Nickel Matte Nickel
  • Nickel Nickel
  • Pewter Pewter
  • Shiny Copper Shiny Copper
  • Sovereign Sovereign

+

{"56203":{"price":"$1,688.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Shadow, 2.2gpm","price_gtm":"1688.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Shadow","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-06995-76977","default":false,"id":"56203"},"28949":{"price":"$1,352.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Nickel, 2.2gpm","price_gtm":"1352.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Nickel","for_sale":0,"line_type":"Stock Inventory Item","instock":true,"availability_message":null,"sku":"07-09816-80217","default":true,"id":"28949"},"34143":{"price":"$1,375.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Unlacquered Brass, 2.2gpm","price_gtm":"1375.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Unlacquered Brass","for_sale":0,"line_type":"Stock Inventory Item","instock":true,"availability_message":null,"sku":"07-10675-46524","default":false,"id":"34143"},"42416":{"price":"$1,688.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Vintage Brass, 2.2gpm","price_gtm":"1688.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Vintage Brass","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-10757-00805","default":false,"id":"42416"},"37038":{"price":"$3,300.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Matte Gold, 2.2gpm","price_gtm":"3300.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Matte Gold","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-13688-27013","default":false,"id":"37038"},"37035":{"price":"$1,578.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Burnished Nickel, 2.2gpm","price_gtm":"1578.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Burnished Nickel","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-26489-95548","default":false,"id":"37035"},"28948":{"price":"$1,496.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Matte Nickel, 2.2gpm","price_gtm":"1496.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Matte Nickel","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-28151-68451","default":false,"id":"28948"},"28947":{"price":"$1,228.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Chrome, 2.2gpm","price_gtm":"1228.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Chrome","for_sale":0,"line_type":"Stock Inventory Item","instock":true,"availability_message":null,"sku":"07-30294-86106","default":false,"id":"28947"},"28946":{"price":"$2,430.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Antique Brass, 2.2gpm","price_gtm":"2430.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Antique Brass","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-30658-13589","default":false,"id":"28946"},"37039":{"price":"$1,644.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Shiny Copper, 2.2gpm","price_gtm":"1644.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Shiny Copper","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-31524-35585","default":false,"id":"37039"},"42414":{"price":"$1,635.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Burnished Brass, 2.2gpm","price_gtm":"1635.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Burnished Brass","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-68023-90503","default":false,"id":"42414"},"37036":{"price":"$1,710.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Carbon, 2.2gpm","price_gtm":"1710.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Carbon","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-70229-40275","default":false,"id":"37036"},"37034":{"price":"$1,644.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Antique Copper, 2.2gpm","price_gtm":"1644.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Antique Copper","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-71597-11840","default":false,"id":"37034"},"42415":{"price":"$1,688.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Pewter, 2.2gpm","price_gtm":"1688.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Pewter","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-79046-74420","default":false,"id":"42415"},"37040":{"price":"$1,644.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Sovereign, 2.2gpm","price_gtm":"1644.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Sovereign","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-82362-04408","default":false,"id":"37040"},"37037":{"price":"$3,287.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Gold, 2.2gpm","price_gtm":"3287.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Gold","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-85129-52565","default":false,"id":"37037"},"28945":{"price":"$2,068.00","price_unit":"Each","name":".25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles in Architectural Bronze, 2.2gpm","price_gtm":"2068.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Architectural Bronze","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-87590-21108","default":false,"id":"28945"}}
{"attributes":{"143":{"id":"143","code":"metal_finish","label":"Metal Finish","options":[{"id":"3","label":"Chrome","products":["28947"],"for_sale":0,"price":1228},{"id":"5","label":"Nickel","products":["28949"],"for_sale":0,"price":1352},{"id":"19","label":"Unlacquered Brass","products":["34143"],"for_sale":0,"price":1375},{"id":"6","label":"Matte Nickel","products":["28948"],"for_sale":0,"price":1496},{"id":"406","label":"Burnished Nickel","products":["37035"],"for_sale":0,"price":1578},{"id":"495","label":"Burnished Brass","products":["42414"],"for_sale":0,"price":1635},{"id":"13","label":"Antique Copper","products":["37034"],"for_sale":0,"price":1644},{"id":"17","label":"Shiny Copper","products":["37039"],"for_sale":0,"price":1644},{"id":"18","label":"Sovereign","products":["37040"],"for_sale":0,"price":1644},{"id":"450","label":"Pewter","products":["42415"],"for_sale":0,"price":1688},{"id":"2461","label":"Shadow","products":["56203"],"for_sale":0,"price":1688},{"id":"672","label":"Vintage Brass","products":["42416"],"for_sale":0,"price":1688},{"id":"249","label":"Carbon","products":["37036"],"for_sale":0,"price":1710},{"id":"8","label":"Architectural Bronze","products":["28945"],"for_sale":0,"price":2068},{"id":"14","label":"Antique Brass","products":["28946"],"for_sale":0,"price":2430},{"id":"15","label":"Gold","products":["37037"],"for_sale":0,"price":3287},{"id":"16","label":"Matte Gold","products":["37038"],"for_sale":0,"price":3300}],"position":"0"}},"optionProducts":{"143":{"672":["42416"],"14":["28946"],"450":["42415"],"19":["34143"],"3":["28947"],"13":["37034"],"5":["28949"],"6":["28948"],"249":["37036"],"2461":["56203"],"8":["28945"],"406":["37035"],"495":["42414"],"15":["37037"],"16":["37038"],"17":["37039"],"18":["37040"]}},"template":"$<%- data.price %>","optionPrices":{"56203":{"oldPrice":{"amount":"1688"},"basePrice":{"amount":"1688"},"finalPrice":{"amount":"1688"}},"28949":{"oldPrice":{"amount":"1352"},"basePrice":{"amount":"1352"},"finalPrice":{"amount":"1352"}},"34143":{"oldPrice":{"amount":"1375"},"basePrice":{"amount":"1375"},"finalPrice":{"amount":"1375"}},"42416":{"oldPrice":{"amount":"1688"},"basePrice":{"amount":"1688"},"finalPrice":{"amount":"1688"}},"37038":{"oldPrice":{"amount":"3300"},"basePrice":{"amount":"3300"},"finalPrice":{"amount":"3300"}},"37035":{"oldPrice":{"amount":"1578"},"basePrice":{"amount":"1578"},"finalPrice":{"amount":"1578"}},"28948":{"oldPrice":{"amount":"1496"},"basePrice":{"amount":"1496"},"finalPrice":{"amount":"1496"}},"28947":{"oldPrice":{"amount":"1228"},"basePrice":{"amount":"1228"},"finalPrice":{"amount":"1228"}},"28946":{"oldPrice":{"amount":"2430"},"basePrice":{"amount":"2430"},"finalPrice":{"amount":"2430"}},"37039":{"oldPrice":{"amount":"1644"},"basePrice":{"amount":"1644"},"finalPrice":{"amount":"1644"}},"42414":{"oldPrice":{"amount":"1635"},"basePrice":{"amount":"1635"},"finalPrice":{"amount":"1635"}},"37036":{"oldPrice":{"amount":"1710"},"basePrice":{"amount":"1710"},"finalPrice":{"amount":"1710"}},"37034":{"oldPrice":{"amount":"1644"},"basePrice":{"amount":"1644"},"finalPrice":{"amount":"1644"}},"42415":{"oldPrice":{"amount":"1688"},"basePrice":{"amount":"1688"},"finalPrice":{"amount":"1688"}},"37040":{"oldPrice":{"amount":"1644"},"basePrice":{"amount":"1644"},"finalPrice":{"amount":"1644"}},"37037":{"oldPrice":{"amount":"3287"},"basePrice":{"amount":"3287"},"finalPrice":{"amount":"3287"}},"28945":{"oldPrice":{"amount":"2068"},"basePrice":{"amount":"2068"},"finalPrice":{"amount":"2068"}}},"prices":{"oldPrice":{"amount":"1228"},"basePrice":{"amount":"1228"},"finalPrice":{"amount":"1228"}},"productId":"47163","chooseText":"Choose an Option","images":[],"index":{"56203":{"143":"2461"},"28949":{"143":"5"},"34143":{"143":"19"},"42416":{"143":"672"},"37038":{"143":"16"},"37035":{"143":"406"},"28948":{"143":"6"},"28947":{"143":"3"},"28946":{"143":"14"},"37039":{"143":"17"},"42414":{"143":"495"},"37036":{"143":"249"},"37034":{"143":"13"},"42415":{"143":"450"},"37040":{"143":"18"},"37037":{"143":"15"},"28945":{"143":"8"}}}
Request Information

Item Details

  • .25 COLLECTION

    .25 is the ultimate in utilitarian elegance: A simple and understated design that is equally functional and beautiful.

  • FEATURES
    • Uses a simple pop-up drain that is closed and opened by pushing down on the stopper. Does not use a lift rod to operate the drain stopper.
    • The cross handle's anthropomorphic form is not only gentle in its execution, but also welcome to the touch.
    • Standard flow rate is 2.2gpm (8.3 L/min) and State of California requires 1.2gpm(4.5 L/min). Also available in other flow options. Contact a sales associate for details.
    VIEW FULL COLLECTION

Technical Documents

Technical Details

    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Weighted Average Lead Content: Complies with 0.25% WALC
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Weighted Average Lead Content: Complies with 0.25% WALC
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Weighted Average Lead Content: Complies with 0.25% WALC
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Weighted Average Lead Content: Complies with 0.25% WALC
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Weighted Average Lead Content: Complies with 0.25% WALC
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS01: ASME A112.18.1 / CSA B125.1, ASME A112.18.2 / CSA B125.2, ANSI NSF, CEC, Watersense 61 Sect. 9, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Deck Thickness Maximum: 2.13 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 5.50 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Deck Thickness Minimum: 0.13 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Male With Supply Nut
    • Handle Turn Angle: Quarter Turn
    • Weighted Average Lead Content: Complies with 0.25% WALC
    • Flow Rate: 2.2gpm

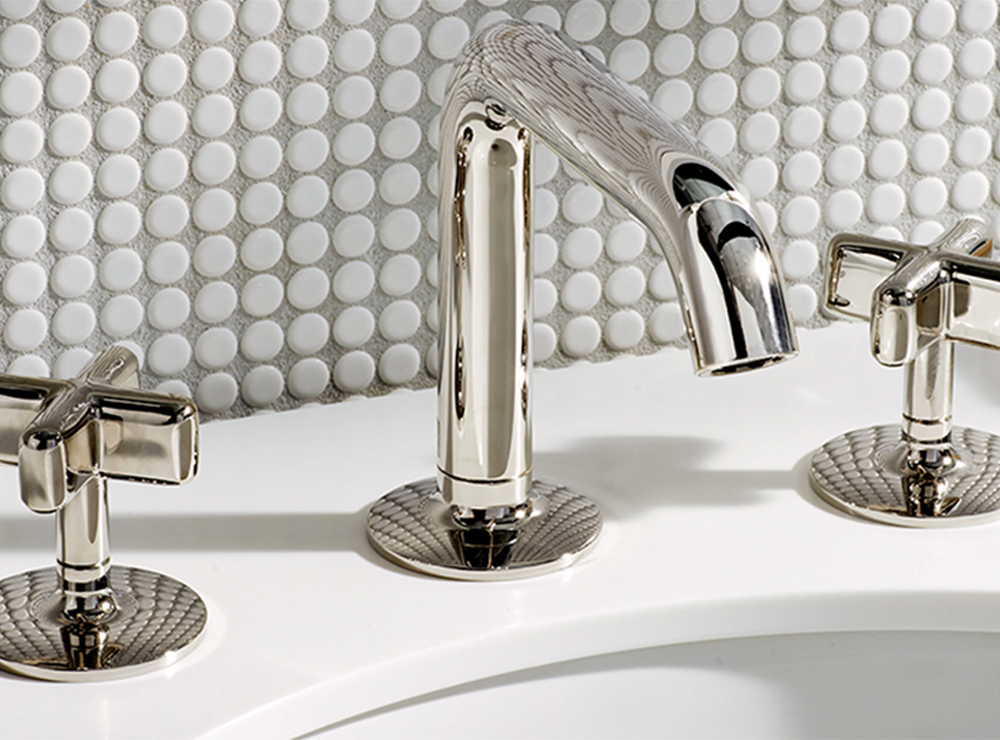

.25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles
More Information
family name .25

REQUEST INFORMATION

.25

.25 Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles

STYLE: PTLS01 STOCK ITEM

  • Need technical support?
    Service portal
