family name
Boulevard

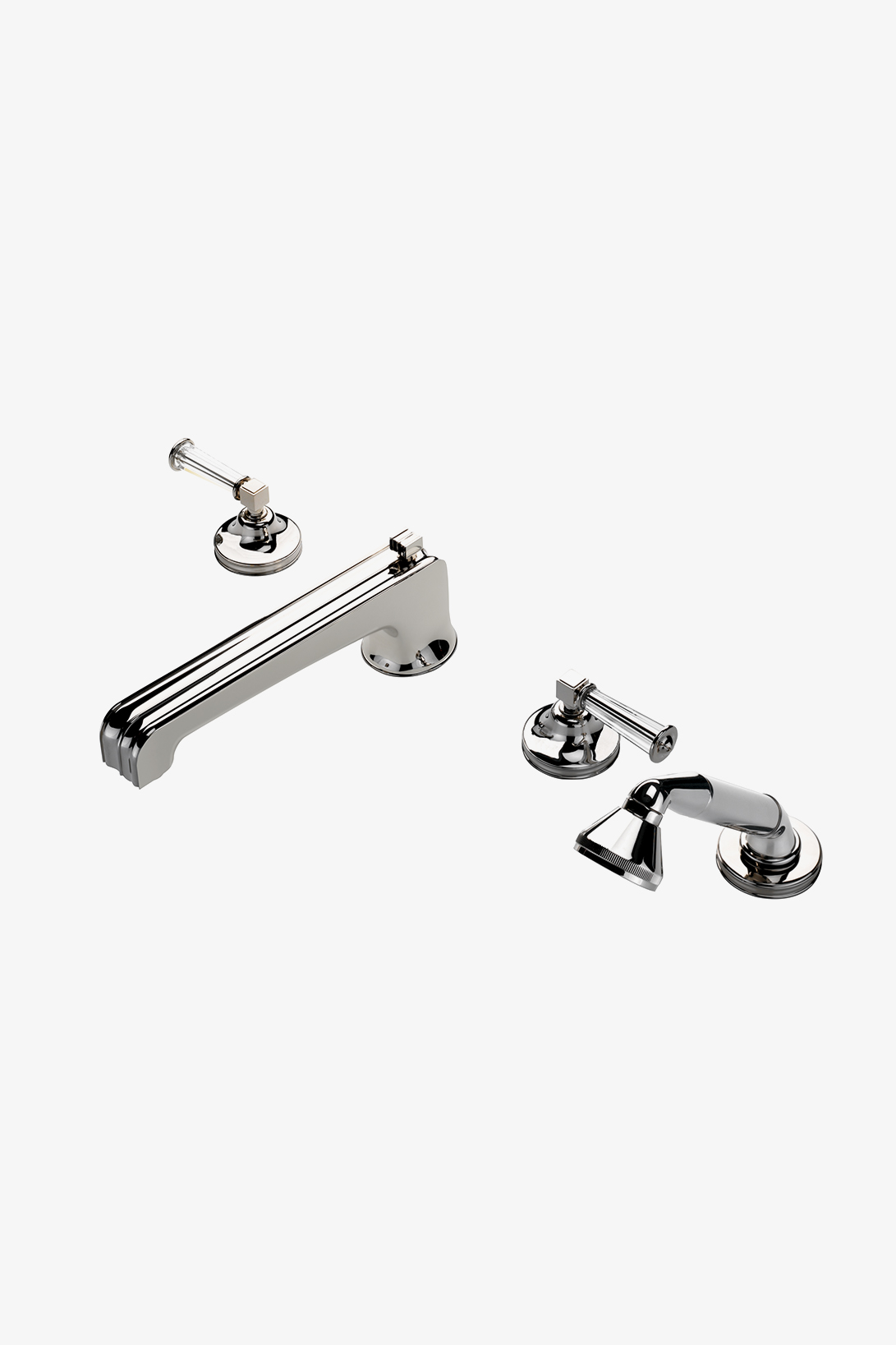

Boulevard Low Profile Concealed Tub Filler With Handshower and Metal Lever Handles

SKU
BDTF88
In stock
$4,290.00
Product Options Color / Finish Options
Wishlist Icon ADD TO PROJECTS FOLDER Add to Project Folder
Locations Icon Print Page
Locations Icon Find a Showroom

Color / Finish Options

  • Antique Brass Antique Brass
  • Antique Copper Antique Copper
  • Architectural Bronze Architectural Bronze
  • Burnished Brass Burnished Brass
  • Burnished Nickel Burnished Nickel
  • Carbon Carbon
  • Chrome Chrome
  • Gold Gold
  • Matte Gold Matte Gold
  • Matte Nickel Matte Nickel
  • Nickel Nickel
  • Pewter Pewter
  • Shadow Shadow
  • Shiny Copper Shiny Copper
  • Sovereign Sovereign
  • Unlacquered Brass Unlacquered Brass
  • Vintage Brass Vintage Brass

+

{"19978":{"price":"$7,671.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Matte Gold","price_gtm":"7671.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Matte Gold","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-03358-89517","default":false,"id":"19978"},"19973":{"price":"$5,898.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Architectural Bronze","price_gtm":"5898.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Architectural Bronze","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-07302-56371","default":false,"id":"19973"},"42862":{"price":"$5,899.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Pewter","price_gtm":"5899.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Pewter","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-08219-73559","default":false,"id":"42862"},"55686":{"price":"$5,899.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Shadow","price_gtm":"5899.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Shadow","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-12461-03992","default":false,"id":"55686"},"42861":{"price":"$5,709.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Burnished Brass","price_gtm":"5709.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Burnished Brass","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-21503-20186","default":false,"id":"42861"},"19980":{"price":"$4,829.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Nickel","price_gtm":"4829.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Nickel","for_sale":0,"line_type":"Stock Inventory Item","instock":true,"availability_message":null,"sku":"09-33847-05743","default":true,"id":"19980"},"19981":{"price":"$7,179.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Shiny Copper","price_gtm":"7179.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Shiny Copper","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-38618-78397","default":false,"id":"19981"},"19976":{"price":"$4,290.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Chrome","price_gtm":"4290.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Chrome","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-60049-52727","default":false,"id":"19976"},"19983":{"price":"$4,800.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Unlacquered Brass","price_gtm":"4800.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Unlacquered Brass","for_sale":0,"line_type":"Stock Inventory Item","instock":true,"availability_message":null,"sku":"09-61558-66121","default":false,"id":"19983"},"19982":{"price":"$7,179.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Sovereign","price_gtm":"7179.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Sovereign","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-81651-80079","default":false,"id":"19982"},"19977":{"price":"$8,701.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Gold","price_gtm":"8701.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Gold","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-82076-22323","default":false,"id":"19977"},"35876":{"price":"$5,662.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Burnished Nickel","price_gtm":"5662.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Burnished Nickel","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-85976-41717","default":false,"id":"35876"},"42863":{"price":"$5,899.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Vintage Brass","price_gtm":"5899.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Vintage Brass","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-88538-33444","default":false,"id":"42863"},"19974":{"price":"$6,881.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Antique Copper","price_gtm":"6881.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Antique Copper","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-90791-25212","default":false,"id":"19974"},"19979":{"price":"$4,920.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Matte Nickel","price_gtm":"4920.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Matte Nickel","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-91919-15904","default":false,"id":"19979"},"35877":{"price":"$6,132.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Carbon","price_gtm":"6132.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Carbon","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-92336-67096","default":false,"id":"35877"},"19975":{"price":"$6,242.00","price_unit":"Each","name":"Boulevard Low Profile Concealed Tub Filler with 2.5gpm Handshower and Metal Lever Handles in Antique Brass","price_gtm":"6242.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Bathtub Faucets","category":"Fittings & Fixtures","family-name":"Boulevard","variant":"Metal Finish:Antique Brass","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-97852-36497","default":false,"id":"19975"}}
{"attributes":{"143":{"id":"143","code":"metal_finish","label":"Metal Finish","options":[{"id":"3","label":"Chrome","products":["19976"],"for_sale":0,"price":4290},{"id":"19","label":"Unlacquered Brass","products":["19983"],"for_sale":0,"price":4800},{"id":"5","label":"Nickel","products":["19980"],"for_sale":0,"price":4829},{"id":"6","label":"Matte Nickel","products":["19979"],"for_sale":0,"price":4920},{"id":"406","label":"Burnished Nickel","products":["35876"],"for_sale":0,"price":5662},{"id":"495","label":"Burnished Brass","products":["42861"],"for_sale":0,"price":5709},{"id":"8","label":"Architectural Bronze","products":["19973"],"for_sale":0,"price":5898},{"id":"450","label":"Pewter","products":["42862"],"for_sale":0,"price":5899},{"id":"2461","label":"Shadow","products":["55686"],"for_sale":0,"price":5899},{"id":"672","label":"Vintage Brass","products":["42863"],"for_sale":0,"price":5899},{"id":"249","label":"Carbon","products":["35877"],"for_sale":0,"price":6132},{"id":"14","label":"Antique Brass","products":["19975"],"for_sale":0,"price":6242},{"id":"13","label":"Antique Copper","products":["19974"],"for_sale":0,"price":6881},{"id":"17","label":"Shiny Copper","products":["19981"],"for_sale":0,"price":7179},{"id":"18","label":"Sovereign","products":["19982"],"for_sale":0,"price":7179},{"id":"16","label":"Matte Gold","products":["19978"],"for_sale":0,"price":7671},{"id":"15","label":"Gold","products":["19977"],"for_sale":0,"price":8701}],"position":"0"}},"optionProducts":{"143":{"16":["19978"],"14":["19975"],"5":["19980"],"15":["19977"],"249":["35877"],"495":["42861"],"18":["19982"],"6":["19979"],"2461":["55686"],"19":["19983"],"13":["19974"],"450":["42862"],"3":["19976"],"672":["42863"],"8":["19973"],"17":["19981"],"406":["35876"]}},"template":"$<%- data.price %>","optionPrices":{"19978":{"oldPrice":{"amount":"7671"},"basePrice":{"amount":"7671"},"finalPrice":{"amount":"7671"}},"19973":{"oldPrice":{"amount":"5898"},"basePrice":{"amount":"5898"},"finalPrice":{"amount":"5898"}},"42862":{"oldPrice":{"amount":"5899"},"basePrice":{"amount":"5899"},"finalPrice":{"amount":"5899"}},"55686":{"oldPrice":{"amount":"5899"},"basePrice":{"amount":"5899"},"finalPrice":{"amount":"5899"}},"42861":{"oldPrice":{"amount":"5709"},"basePrice":{"amount":"5709"},"finalPrice":{"amount":"5709"}},"19980":{"oldPrice":{"amount":"4829"},"basePrice":{"amount":"4829"},"finalPrice":{"amount":"4829"}},"19981":{"oldPrice":{"amount":"7179"},"basePrice":{"amount":"7179"},"finalPrice":{"amount":"7179"}},"19976":{"oldPrice":{"amount":"4290"},"basePrice":{"amount":"4290"},"finalPrice":{"amount":"4290"}},"19983":{"oldPrice":{"amount":"4800"},"basePrice":{"amount":"4800"},"finalPrice":{"amount":"4800"}},"19982":{"oldPrice":{"amount":"7179"},"basePrice":{"amount":"7179"},"finalPrice":{"amount":"7179"}},"19977":{"oldPrice":{"amount":"8701"},"basePrice":{"amount":"8701"},"finalPrice":{"amount":"8701"}},"35876":{"oldPrice":{"amount":"5662"},"basePrice":{"amount":"5662"},"finalPrice":{"amount":"5662"}},"42863":{"oldPrice":{"amount":"5899"},"basePrice":{"amount":"5899"},"finalPrice":{"amount":"5899"}},"19974":{"oldPrice":{"amount":"6881"},"basePrice":{"amount":"6881"},"finalPrice":{"amount":"6881"}},"19979":{"oldPrice":{"amount":"4920"},"basePrice":{"amount":"4920"},"finalPrice":{"amount":"4920"}},"35877":{"oldPrice":{"amount":"6132"},"basePrice":{"amount":"6132"},"finalPrice":{"amount":"6132"}},"19975":{"oldPrice":{"amount":"6242"},"basePrice":{"amount":"6242"},"finalPrice":{"amount":"6242"}}},"prices":{"oldPrice":{"amount":"4290"},"basePrice":{"amount":"4290"},"finalPrice":{"amount":"4290"}},"productId":"48170","chooseText":"Choose an Option","images":[],"index":{"19978":{"143":"16"},"19973":{"143":"8"},"42862":{"143":"450"},"55686":{"143":"2461"},"42861":{"143":"495"},"19980":{"143":"5"},"19981":{"143":"17"},"19976":{"143":"3"},"19983":{"143":"19"},"19982":{"143":"18"},"19977":{"143":"15"},"35876":{"143":"406"},"42863":{"143":"672"},"19974":{"143":"13"},"19979":{"143":"6"},"35877":{"143":"249"},"19975":{"143":"14"}}}
Request Information

Item Details

  • Boulevard COLLECTION

    Inspiration from 1930s objects evokes extravagance: a strong silhouette, lavish scale and elegant decoration. Machine and artisan hands yield crisp details and curves.

  • FEATURES
    • Metal lever handles
    • Lift knob located on top of spout to divert water between tub and handshower with 2" head and adjustable spray
    • Solidly sized and generous in scale, decorative elements convey a sense of substance
    • Stocked in Nickel and Unlacquered Brass
    • Unrestricted flow for tub spout. Stocked in 2.5gpm (9.5L/min) flow rate for handshower. Alternate flow regulation of 1.75gpm (6.6/min) also availble as special order
    VIEW FULL COLLECTION

Technical Documents

Technical Details

    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 13
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 10
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 14
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 14
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 14
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 10
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 13
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 10
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 10
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 13
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 13
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 14
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 14
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 13
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 10
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 14
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: No
    • Code Compliance: Code # BDTU88: ASME A112.18.1, CSA B125, IAPMO, State of MA
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Spout Swivel: No
    • Flow Restriction Options: 2.5, 2.0, 1.75, 1.5, 0.92
    • Handshower Hose Material: Brass
    • Valve Material: ceramic
    • Diameter of Head: 2.00 INCH
    • Handshower / Spray Hose Length: 79.00 INCH
    • Deck Thickness Maximum: 1.69 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 9.00 INCH
    • Deck Thickness Minimum: 0.00 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 10.00 INCH
    • Handle Spread Maximum: 12.00 INCH
    • Pivot: No
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Handshower Handle Color and Material: Metal
    • Index Marking: Blank
    • Inlet Connection Type: Male NPT Adapter
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.5gpm
    • Leadtime: 10

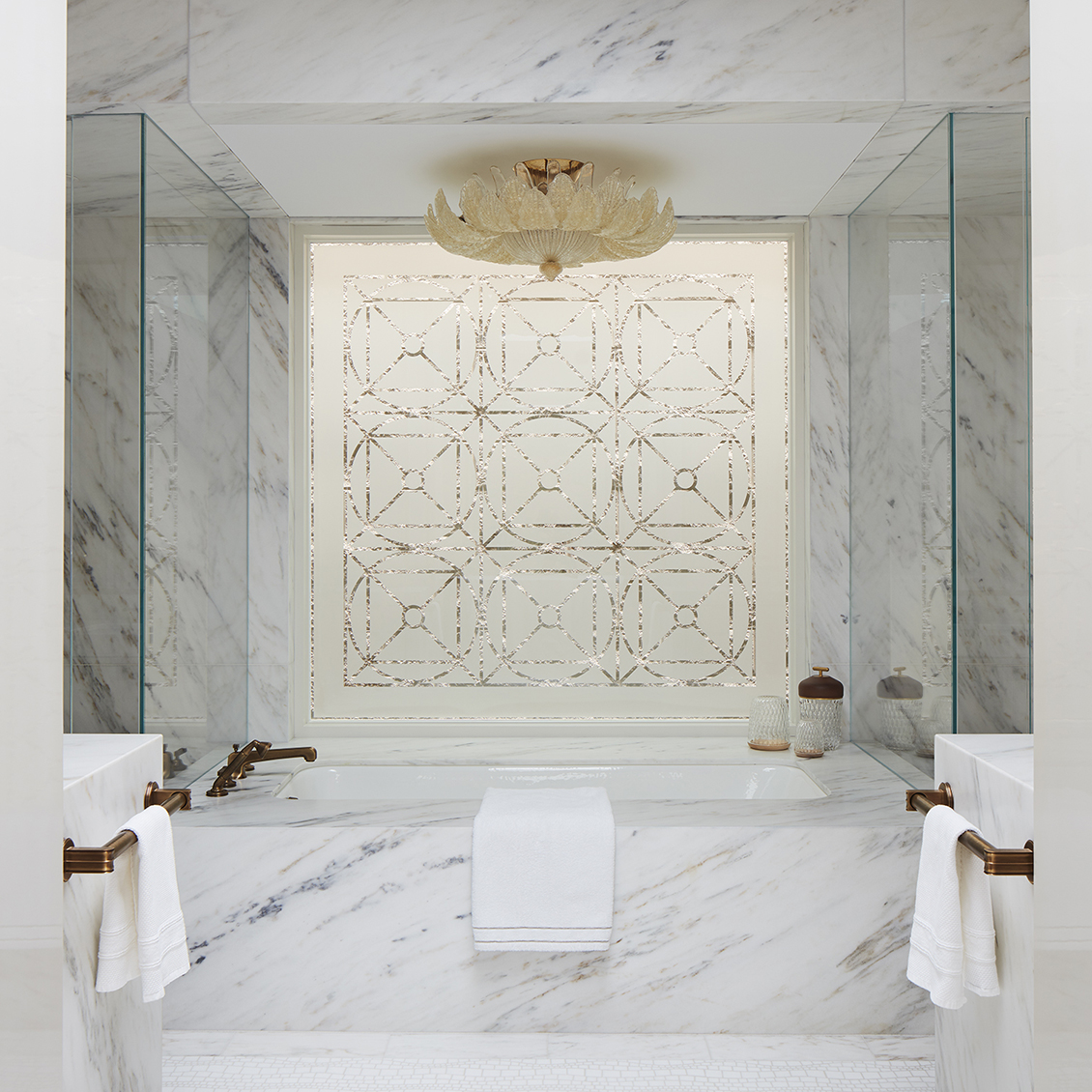

Boulevard Low Profile Concealed Tub Filler With Handshower and Metal Lever Handles
More Information
family name Boulevard

REQUEST INFORMATION

Boulevard

Boulevard Low Profile Concealed Tub Filler With Handshower and Metal Lever Handles

STYLE: BDTF88 STOCK ITEM

  • Need technical support?
    Service portal
