family name
Dash

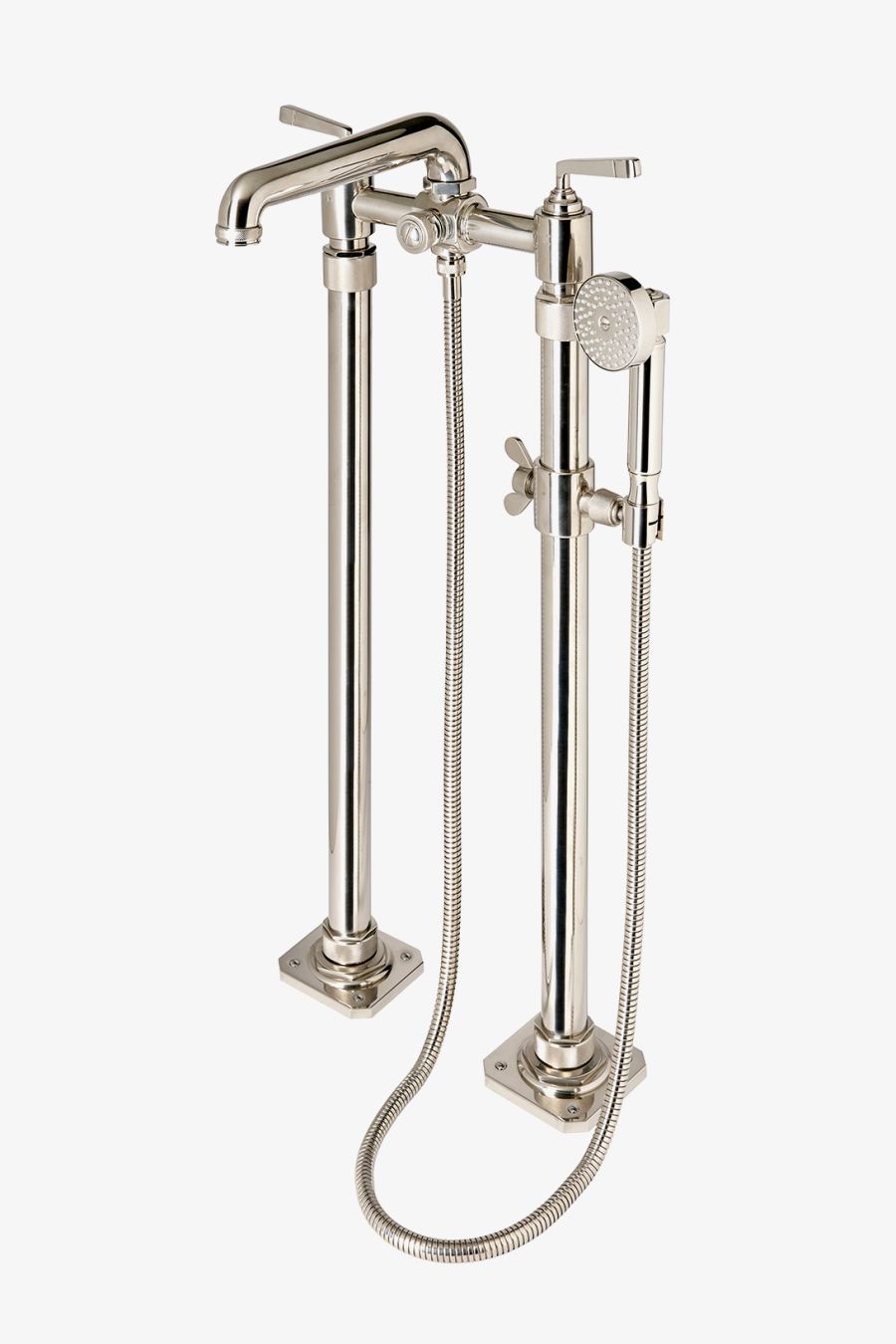

Dash Floor Mounted Exposed Tub Filler with Metal Handshower and Cross Handles

SKU
DSXT60
$4,159.00
Product Options Color / Finish Options
Wishlist Icon ADD TO PROJECTS FOLDER Add to Project Folder
Locations Icon Print Page
Locations Icon Find a Showroom

Color / Finish Options

  • Antique Brass Antique Brass
  • Antique Copper Antique Copper
  • Architectural Bronze Architectural Bronze
  • Burnished Brass Burnished Brass
  • Burnished Nickel Burnished Nickel
  • Carbon Carbon
  • Chrome Chrome
  • Gold Gold
  • Matte Gold Matte Gold
  • Matte Nickel Matte Nickel
  • Nickel Nickel
  • Pewter Pewter
  • Shadow Shadow
  • Shiny Copper Shiny Copper
  • Sovereign Sovereign
  • Unlacquered Brass Unlacquered Brass
  • Vintage Brass Vintage Brass

+

{"60018":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-59991-04774","default":false,"id":"60018"},"55044":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-88762-15708","default":false,"id":"55044"},"60015":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-81490-68511","default":false,"id":"60015"},"60027":{"price":"$5,535.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-77312-26463","default":false,"id":"60027"},"60024":{"price":"$5,490.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-40412-63626","default":false,"id":"60024"},"60025":{"price":"$5,948.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-63850-23500","default":false,"id":"60025"},"55050":{"price":"$4,159.00","price_unit":"Each","for_sale":0,"line_type":"Stock Inventory Item","instock":false,"availability_message":"Available Early 2019","sku":"09-99654-63552","default":true,"id":"55050"},"55060":{"price":"$11,438.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-91986-71136","default":false,"id":"55060"},"60022":{"price":"$11,483.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-33088-16542","default":false,"id":"60022"},"60019":{"price":"$4,783.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":"Available Early 2019","sku":"09-49114-95084","default":false,"id":"60019"},"60021":{"price":"$4,575.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":"Available Early 2019","sku":"09-51325-29695","default":false,"id":"60021"},"60026":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-36150-34534","default":false,"id":"60026"},"60029":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-98106-48351","default":false,"id":"60029"},"55046":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-16953-99252","default":false,"id":"55046"},"55053":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-80756-05715","default":false,"id":"55053"},"60017":{"price":"$4,658.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":"Available Early 2019","sku":"09-93734-63700","default":false,"id":"60017"},"60028":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-38575-16366","default":false,"id":"60028"},"55057":{"price":"$5,535.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-05447-52456","default":false,"id":"55057"},"55051":{"price":"$4,575.00","price_unit":"Each","for_sale":0,"line_type":"Stock Inventory Item","instock":false,"availability_message":"Available Early 2019","sku":"09-11995-67830","default":false,"id":"55051"},"55059":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-17406-66244","default":false,"id":"55059"},"55054":{"price":"$5,490.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-23142-16942","default":false,"id":"55054"},"60014":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-03526-47053","default":false,"id":"60014"},"60016":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-06565-38971","default":false,"id":"60016"},"55045":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-42969-98658","default":false,"id":"55045"},"55055":{"price":"$5,948.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-03325-35169","default":false,"id":"55055"},"55058":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-37695-34364","default":false,"id":"55058"},"55056":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-17698-65427","default":false,"id":"55056"},"60020":{"price":"$4,159.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":"Available Early 2019","sku":"09-61718-23576","default":false,"id":"60020"},"60023":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-12795-00397","default":false,"id":"60023"},"55049":{"price":"$4,783.00","price_unit":"Each","for_sale":0,"line_type":"Stock Inventory Item","instock":false,"availability_message":"Available Early 2019","sku":"09-17445-53023","default":false,"id":"55049"},"60030":{"price":"$11,438.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-83508-37367","default":false,"id":"60030"},"55048":{"price":"$5,719.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-00541-36646","default":false,"id":"55048"},"55047":{"price":"$4,658.00","price_unit":"Each","for_sale":0,"line_type":"Stock Inventory Item","instock":false,"availability_message":"Available Early 2019","sku":"09-64360-47891","default":false,"id":"55047"},"55052":{"price":"$11,483.00","price_unit":"Each","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"09-18452-77174","default":false,"id":"55052"}}
{"attributes":{"143":{"id":"143","code":"metal_finish","label":"Metal Finish","options":[{"id":"3","label":"Chrome","products":["55050","60020"],"for_sale":0,"price":4159},{"id":"5","label":"Nickel","products":["60021","55051"],"for_sale":0,"price":4575},{"id":"19","label":"Unlacquered Brass","products":["60017","55047"],"for_sale":0,"price":4658},{"id":"6","label":"Matte Nickel","products":["60019","55049"],"for_sale":0,"price":4783},{"id":"406","label":"Burnished Nickel","products":["60024","55054"],"for_sale":0,"price":5490},{"id":"495","label":"Burnished Brass","products":["60027","55057"],"for_sale":0,"price":5535},{"id":"14","label":"Antique Brass","products":["60018","55048"],"for_sale":0,"price":5719},{"id":"13","label":"Antique Copper","products":["55044","60014"],"for_sale":0,"price":5719},{"id":"8","label":"Architectural Bronze","products":["60015","55045"],"for_sale":0,"price":5719},{"id":"450","label":"Pewter","products":["60026","55056"],"for_sale":0,"price":5719},{"id":"2461","label":"Shadow","products":["60029","55059"],"for_sale":0,"price":5719},{"id":"17","label":"Shiny Copper","products":["55046","60016"],"for_sale":0,"price":5719},{"id":"18","label":"Sovereign","products":["55053","60023"],"for_sale":0,"price":5719},{"id":"672","label":"Vintage Brass","products":["60028","55058"],"for_sale":0,"price":5719},{"id":"249","label":"Carbon","products":["60025","55055"],"for_sale":0,"price":5948},{"id":"15","label":"Gold","products":["55060","60030"],"for_sale":0,"price":11438},{"id":"16","label":"Matte Gold","products":["60022","55052"],"for_sale":0,"price":11483}],"position":"0"}},"optionProducts":{"143":{"14":["60018","55048"],"13":["55044","60014"],"8":["60015","55045"],"495":["60027","55057"],"406":["60024","55054"],"249":["60025","55055"],"3":["55050","60020"],"15":["55060","60030"],"16":["60022","55052"],"6":["60019","55049"],"5":["60021","55051"],"450":["60026","55056"],"2461":["60029","55059"],"17":["55046","60016"],"18":["55053","60023"],"19":["60017","55047"],"672":["60028","55058"]}},"template":"$<%- data.price %>","optionPrices":{"60018":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"55044":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"60015":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"60027":{"oldPrice":{"amount":"5535"},"basePrice":{"amount":"5535"},"finalPrice":{"amount":"5535"}},"60024":{"oldPrice":{"amount":"5490"},"basePrice":{"amount":"5490"},"finalPrice":{"amount":"5490"}},"60025":{"oldPrice":{"amount":"5948"},"basePrice":{"amount":"5948"},"finalPrice":{"amount":"5948"}},"55050":{"oldPrice":{"amount":"4159"},"basePrice":{"amount":"4159"},"finalPrice":{"amount":"4159"}},"55060":{"oldPrice":{"amount":"11438"},"basePrice":{"amount":"11438"},"finalPrice":{"amount":"11438"}},"60022":{"oldPrice":{"amount":"11483"},"basePrice":{"amount":"11483"},"finalPrice":{"amount":"11483"}},"60019":{"oldPrice":{"amount":"4783"},"basePrice":{"amount":"4783"},"finalPrice":{"amount":"4783"}},"60021":{"oldPrice":{"amount":"4575"},"basePrice":{"amount":"4575"},"finalPrice":{"amount":"4575"}},"60026":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"60029":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"55046":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"55053":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"60017":{"oldPrice":{"amount":"4658"},"basePrice":{"amount":"4658"},"finalPrice":{"amount":"4658"}},"60028":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"55057":{"oldPrice":{"amount":"5535"},"basePrice":{"amount":"5535"},"finalPrice":{"amount":"5535"}},"55051":{"oldPrice":{"amount":"4575"},"basePrice":{"amount":"4575"},"finalPrice":{"amount":"4575"}},"55059":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"55054":{"oldPrice":{"amount":"5490"},"basePrice":{"amount":"5490"},"finalPrice":{"amount":"5490"}},"60014":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"60016":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"55045":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"55055":{"oldPrice":{"amount":"5948"},"basePrice":{"amount":"5948"},"finalPrice":{"amount":"5948"}},"55058":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"55056":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"60020":{"oldPrice":{"amount":"4159"},"basePrice":{"amount":"4159"},"finalPrice":{"amount":"4159"}},"60023":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"55049":{"oldPrice":{"amount":"4783"},"basePrice":{"amount":"4783"},"finalPrice":{"amount":"4783"}},"60030":{"oldPrice":{"amount":"11438"},"basePrice":{"amount":"11438"},"finalPrice":{"amount":"11438"}},"55048":{"oldPrice":{"amount":"5719"},"basePrice":{"amount":"5719"},"finalPrice":{"amount":"5719"}},"55047":{"oldPrice":{"amount":"4658"},"basePrice":{"amount":"4658"},"finalPrice":{"amount":"4658"}},"55052":{"oldPrice":{"amount":"11483"},"basePrice":{"amount":"11483"},"finalPrice":{"amount":"11483"}}},"prices":{"oldPrice":{"amount":"4159"},"basePrice":{"amount":"4159"},"finalPrice":{"amount":"4159"}},"productId":"55221","chooseText":"Choose an Option","images":[],"index":{"60018":{"143":"14"},"55044":{"143":"13"},"60015":{"143":"8"},"60027":{"143":"495"},"60024":{"143":"406"},"60025":{"143":"249"},"55050":{"143":"3"},"55060":{"143":"15"},"60022":{"143":"16"},"60019":{"143":"6"},"60021":{"143":"5"},"60026":{"143":"450"},"60029":{"143":"2461"},"55046":{"143":"17"},"55053":{"143":"18"},"60017":{"143":"19"},"60028":{"143":"672"},"55057":{"143":"495"},"55051":{"143":"5"},"55059":{"143":"2461"},"55054":{"143":"406"},"60014":{"143":"13"},"60016":{"143":"17"},"55045":{"143":"8"},"55055":{"143":"249"},"55058":{"143":"672"},"55056":{"143":"450"},"60020":{"143":"3"},"60023":{"143":"18"},"55049":{"143":"6"},"60030":{"143":"15"},"55048":{"143":"14"},"55047":{"143":"19"},"55052":{"143":"16"}}}
Request Information

Item Details

  • Dash COLLECTION

    A blend of art and function, Dash pays homage to design elements of the 1930s with pared-down shapes, softened curves and minimal details.

  • FEATURES
    • Metal Cross Handle
    • Includes Required Unions for Mounting
    • Handshower hook features adjustability to pivot the handshower forwards or backwards
    • Stocked in Nickel, Chrome, Unlacquered Brass, and Matte Nickel finishes
    • Stocked in 2.5gpm (9.5 L/min) and 1.75gpm (6.6 L/min) for handshower. State of California requires 1.75gpm (6.6 L/min) to comply with their water conservation requirements. Other flow options are available to order, contact your sales associate or call 1 (800) 899-6757 for details.
    VIEW FULL COLLECTION

Technical Documents

Technical Details

    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Hot Limit Safety Stop: No
    • Integrated Diverter: No
    • Integrated Spray: No
    • Spout Swivel: No
    • Spray Included in Unit: Yes
    • Flow Restriction Options: 2.5, 2.2, 2.0, 1.75, 1.5, 1.2, 0.92
    • Valve Material: Ceramic
    • Diameter of Head: 2.38 INCH
    • Diameter of Legs / Tubes: 1.56 INCH
    • Handshower / Spray Hose Length: 59.00 INCH
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 8.31 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Inlet Connection Size: 0.75 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Pivot: Yes
    • Number of Handles: Two
    • Spout Shape: Gooseneck
    • Installation Requirements or Notes: Pivot, Restricted Maximum Flow Rate and Flow Restriction Options Apply Only to the Handshower.
    • Concealed / Exposed: Exposed
    • Handshower Handle Color and Material: Metal
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 1.75gpm
