  • .25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles
family name
.25

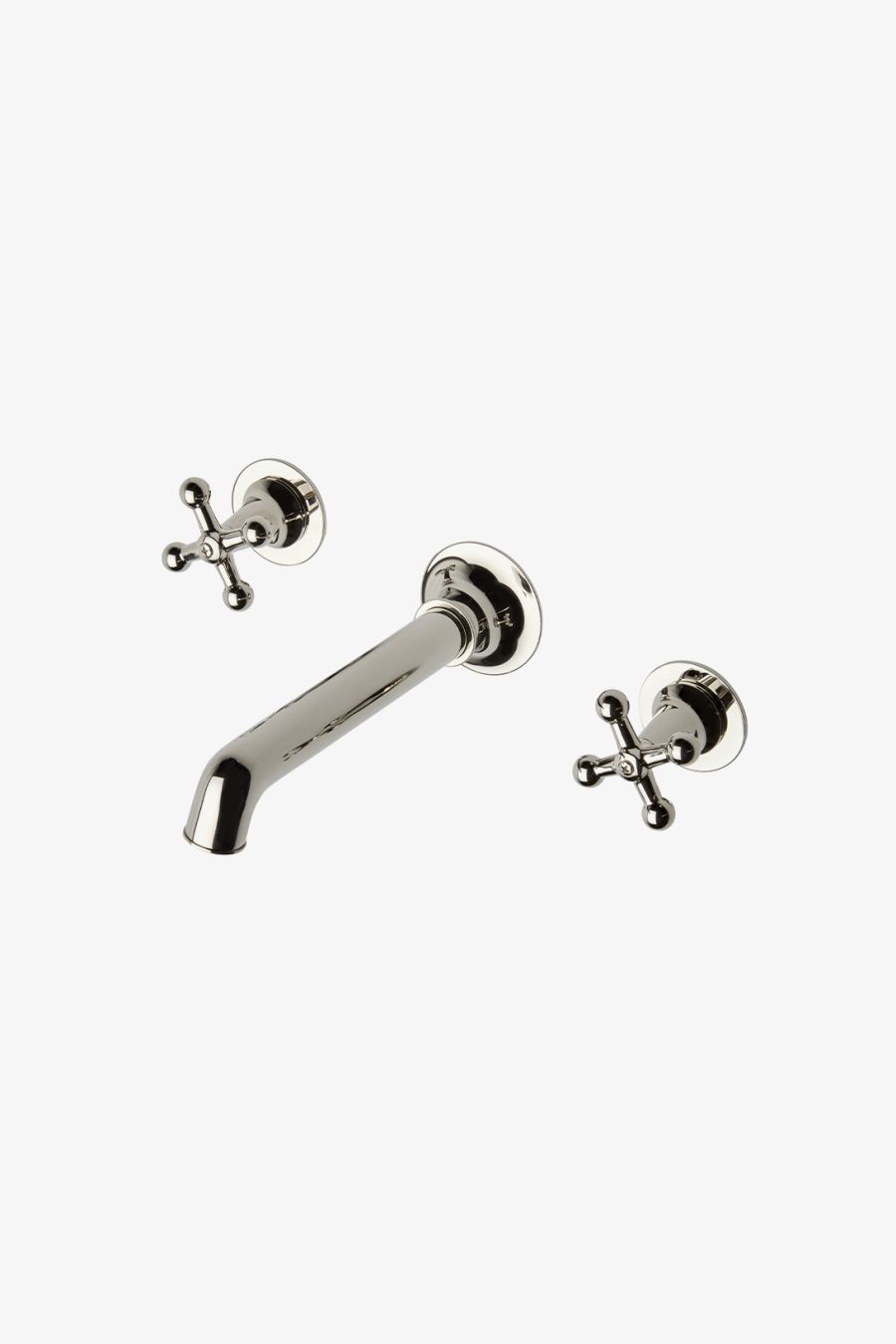

.25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles

SKU
PTLS05
In stock
$1,095.00
Product Options Color / Finish Options
Wishlist Icon ADD TO PROJECTS FOLDER Add to Project Folder
Locations Icon Print Page
Locations Icon Find a Showroom

Color / Finish Options

  • Antique Brass Antique Brass
  • Antique Copper Antique Copper
  • Architectural Bronze Architectural Bronze
  • Burnished Brass Burnished Brass
  • Burnished Nickel Burnished Nickel
  • Carbon Carbon
  • Chrome Chrome
  • Gold Gold
  • Matte Gold Matte Gold
  • Matte Nickel Matte Nickel
  • Nickel Nickel
  • Pewter Pewter
  • Shiny Copper Shiny Copper
  • Sovereign Sovereign
  • Unlacquered Brass Unlacquered Brass
  • Vintage Brass Vintage Brass

+

{"28965":{"price":"$1,858.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Architectural Bronze Complies with 0.25% WALC","price_gtm":"1858.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Architectural Bronze","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-18716-53630","default":false,"id":"28965"},"37067":{"price":"$1,546.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Shiny Copper","price_gtm":"1546.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Shiny Copper","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-20997-09858","default":false,"id":"37067"},"37068":{"price":"$1,546.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Sovereign","price_gtm":"1546.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Sovereign","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-21562-45362","default":false,"id":"37068"},"37063":{"price":"$1,483.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Burnished Nickel","price_gtm":"1483.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Burnished Nickel","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-24630-29152","default":false,"id":"37063"},"28968":{"price":"$1,349.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Matte Nickel Complies with 0.25% WALC","price_gtm":"1349.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Matte Nickel","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-27487-34213","default":false,"id":"28968"},"37066":{"price":"$3,103.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Matte Gold","price_gtm":"3103.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Matte Gold","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-31162-59911","default":false,"id":"37066"},"37064":{"price":"$1,607.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Carbon","price_gtm":"1607.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Carbon","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-33831-85876","default":false,"id":"37064"},"28966":{"price":"$1,983.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Antique Brass Complies with 0.25% WALC","price_gtm":"1983.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Antique Brass","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-48107-58865","default":false,"id":"28966"},"34139":{"price":"$1,226.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Unlacquered Brass Complies with 0.25% WALC, 2.2gpm","price_gtm":"1226.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Unlacquered Brass","for_sale":0,"line_type":"Stock Inventory Item","instock":false,"availability_message":null,"sku":"07-58913-06736","default":false,"id":"34139"},"28969":{"price":"$1,206.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Nickel Complies with 0.25% WALC, 2.2gpm","price_gtm":"1206.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Nickel","for_sale":0,"line_type":"Stock Inventory Item","instock":false,"availability_message":null,"sku":"07-63012-12302","default":true,"id":"28969"},"42421":{"price":"$1,505.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Pewter Complies with 0.25% WALC","price_gtm":"1505.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Pewter","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-76130-78281","default":false,"id":"42421"},"37062":{"price":"$1,546.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Antique Copper","price_gtm":"1546.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Antique Copper","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-76821-16721","default":false,"id":"37062"},"42422":{"price":"$1,505.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Vintage Brass Complies with 0.25% WALC","price_gtm":"1505.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Vintage Brass","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-82392-04940","default":false,"id":"42422"},"42420":{"price":"$1,457.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Burnished Brass Complies with 0.25% WALC","price_gtm":"1457.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Burnished Brass","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-85020-47501","default":false,"id":"42420"},"37065":{"price":"$3,091.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Gold","price_gtm":"3091.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Gold","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-93438-64767","default":false,"id":"37065"},"28967":{"price":"$1,095.00","price_unit":"Each","name":".25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Chrome Complies with 0.25% WALC, 2.2gpm","price_gtm":"1095.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":".25","variant":"Metal Finish:Chrome","for_sale":0,"line_type":"Stock Inventory Item","instock":true,"availability_message":null,"sku":"07-95794-48106","default":false,"id":"28967"}}
{"attributes":{"143":{"id":"143","code":"metal_finish","label":"Metal Finish","options":[{"id":"3","label":"Chrome","products":["28967"],"for_sale":0,"price":1095},{"id":"5","label":"Nickel","products":["28969"],"for_sale":0,"price":1206},{"id":"19","label":"Unlacquered Brass","products":["34139"],"for_sale":0,"price":1226},{"id":"6","label":"Matte Nickel","products":["28968"],"for_sale":0,"price":1349},{"id":"495","label":"Burnished Brass","products":["42420"],"for_sale":0,"price":1457},{"id":"406","label":"Burnished Nickel","products":["37063"],"for_sale":0,"price":1483},{"id":"450","label":"Pewter","products":["42421"],"for_sale":0,"price":1505},{"id":"672","label":"Vintage Brass","products":["42422"],"for_sale":0,"price":1505},{"id":"13","label":"Antique Copper","products":["37062"],"for_sale":0,"price":1546},{"id":"17","label":"Shiny Copper","products":["37067"],"for_sale":0,"price":1546},{"id":"18","label":"Sovereign","products":["37068"],"for_sale":0,"price":1546},{"id":"249","label":"Carbon","products":["37064"],"for_sale":0,"price":1607},{"id":"8","label":"Architectural Bronze","products":["28965"],"for_sale":0,"price":1858},{"id":"14","label":"Antique Brass","products":["28966"],"for_sale":0,"price":1983},{"id":"15","label":"Gold","products":["37065"],"for_sale":0,"price":3091},{"id":"16","label":"Matte Gold","products":["37066"],"for_sale":0,"price":3103}],"position":"0"}},"optionProducts":{"143":{"450":["42421"],"3":["28967"],"6":["28968"],"5":["28969"],"15":["37065"],"406":["37063"],"19":["34139"],"495":["42420"],"18":["37068"],"14":["28966"],"672":["42422"],"17":["37067"],"249":["37064"],"13":["37062"],"8":["28965"],"16":["37066"]}},"template":"$<%- data.price %>","optionPrices":{"28965":{"oldPrice":{"amount":"1858"},"basePrice":{"amount":"1858"},"finalPrice":{"amount":"1858"}},"37067":{"oldPrice":{"amount":"1546"},"basePrice":{"amount":"1546"},"finalPrice":{"amount":"1546"}},"37068":{"oldPrice":{"amount":"1546"},"basePrice":{"amount":"1546"},"finalPrice":{"amount":"1546"}},"37063":{"oldPrice":{"amount":"1483"},"basePrice":{"amount":"1483"},"finalPrice":{"amount":"1483"}},"28968":{"oldPrice":{"amount":"1349"},"basePrice":{"amount":"1349"},"finalPrice":{"amount":"1349"}},"37066":{"oldPrice":{"amount":"3103"},"basePrice":{"amount":"3103"},"finalPrice":{"amount":"3103"}},"37064":{"oldPrice":{"amount":"1607"},"basePrice":{"amount":"1607"},"finalPrice":{"amount":"1607"}},"28966":{"oldPrice":{"amount":"1983"},"basePrice":{"amount":"1983"},"finalPrice":{"amount":"1983"}},"34139":{"oldPrice":{"amount":"1226"},"basePrice":{"amount":"1226"},"finalPrice":{"amount":"1226"}},"28969":{"oldPrice":{"amount":"1206"},"basePrice":{"amount":"1206"},"finalPrice":{"amount":"1206"}},"42421":{"oldPrice":{"amount":"1505"},"basePrice":{"amount":"1505"},"finalPrice":{"amount":"1505"}},"37062":{"oldPrice":{"amount":"1546"},"basePrice":{"amount":"1546"},"finalPrice":{"amount":"1546"}},"42422":{"oldPrice":{"amount":"1505"},"basePrice":{"amount":"1505"},"finalPrice":{"amount":"1505"}},"42420":{"oldPrice":{"amount":"1457"},"basePrice":{"amount":"1457"},"finalPrice":{"amount":"1457"}},"37065":{"oldPrice":{"amount":"3091"},"basePrice":{"amount":"3091"},"finalPrice":{"amount":"3091"}},"28967":{"oldPrice":{"amount":"1095"},"basePrice":{"amount":"1095"},"finalPrice":{"amount":"1095"}}},"prices":{"oldPrice":{"amount":"1095"},"basePrice":{"amount":"1095"},"finalPrice":{"amount":"1095"}},"productId":"47165","chooseText":"Choose an Option","images":[],"index":{"28965":{"143":"8"},"37067":{"143":"17"},"37068":{"143":"18"},"37063":{"143":"406"},"28968":{"143":"6"},"37066":{"143":"16"},"37064":{"143":"249"},"28966":{"143":"14"},"34139":{"143":"19"},"28969":{"143":"5"},"42421":{"143":"450"},"37062":{"143":"13"},"42422":{"143":"672"},"42420":{"143":"495"},"37065":{"143":"15"},"28967":{"143":"3"}}}
Request Information

Item Details

  • .25 COLLECTION

    .25 is the ultimate in utilitarian elegance: A simple and understated design that is equally functional and beautiful.

  • FEATURES
    • Uses a simple pop-up drain that is closed and opened by pushing down on the stopper. Does not use a lift rod to operate the drain stopper.
    • The cross handle's anthropomorphic form is not only gentle in its execution, but also welcome to the touch.
    • Standard flow rate is 2.2gpm (8.3 L/min) and State of California requires 1.2gpm(4.5 L/min). Also available in other flow options. Contact a sales associate for details.
    VIEW FULL COLLECTION

Technical Documents

Technical Details

    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Weighted Average Lead Content: Complies with 0.25% WALC
    • Flow Rate: 2.2gpm
    • Leadtime: 20
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Leadtime: 20
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Leadtime: 20
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Leadtime: 20
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Weighted Average Lead Content: Complies with 0.25% WALC
    • Flow Rate: 2.2gpm
    • Leadtime: 20
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Leadtime: 20
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Leadtime: 20
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Weighted Average Lead Content: Complies with 0.25% WALC
    • Flow Rate: 2.2gpm
    • Leadtime: 20
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Weighted Average Lead Content: Complies with 0.25% WALC
    • Flow Rate: 2.2gpm
    • Leadtime: 10
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Weighted Average Lead Content: Complies with 0.25% WALC
    • Flow Rate: 2.2gpm
    • Leadtime: 10
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Leadtime: 20
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Leadtime: 20
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Leadtime: 20
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Leadtime: 20
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Leadtime: 20
    • Care and Cleaning Summary: Wash surfaces gently with a soft damp cloth; use a neutral liquid soap with water for daily cleaning, dry any overspray.
    • ADA Compliance: Yes
    • Code Compliance: Code # PTLS05: Complies with ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, CEC, NSF 61, NSF 372, Watersense, ADA and 0.25% Weighted Average Lead content. Certified with IAPMO, cUPC, CEC, DOE, NSF, State of MA, WRAS and WaterSense.
    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Anti-scald Protection: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass
    • Flow Restriction Options: 1.0 , 1.2 , 1.5 , 1.75, 2.2
    • Valve Material: Ceramic
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.00 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 1.25 INCH
    • Drain Depth Maximum: 1.75 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.13 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Concealed / Exposed: Concealed
    • Drain Style: Push Touch
    • Inlet Connection Type: Copper Sweat
    • Handle Turn Angle: Quarter Turn
    • Weighted Average Lead Content: Complies with 0.25% WALC
    • Flow Rate: 2.2gpm
    • Leadtime: 10
.25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles
More Information
family name .25

REQUEST INFORMATION

.25

.25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles

STYLE: PTLS05 STOCK ITEM

  • Need technical support?
    Service portal

Request for Trade pricing

.25

.25 Low Profile Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles

STYLE: PTLS05 STOCK ITEM

  • Yes, Notify me of new product, offers, and inspiration.

  • Need technical support? Visit our Service portal

+

About Us
Country
Contact Us
Client Services

2019 WATERWORKS OPERATING COMPANY LLC. ALL RIGHTS RESERVED. WATERWORKS, WATERWORKS STUDIO & ADDITIONAL REGISTERED AND UNREGISTERED TRADEMARKS ARE THE PROPERTY OF WATERWORKS IP COMPANY LLC AND ITS AFFILIATES.

SITE MAP

TERMS OF USE | PRIVACY POLICY
