Dash

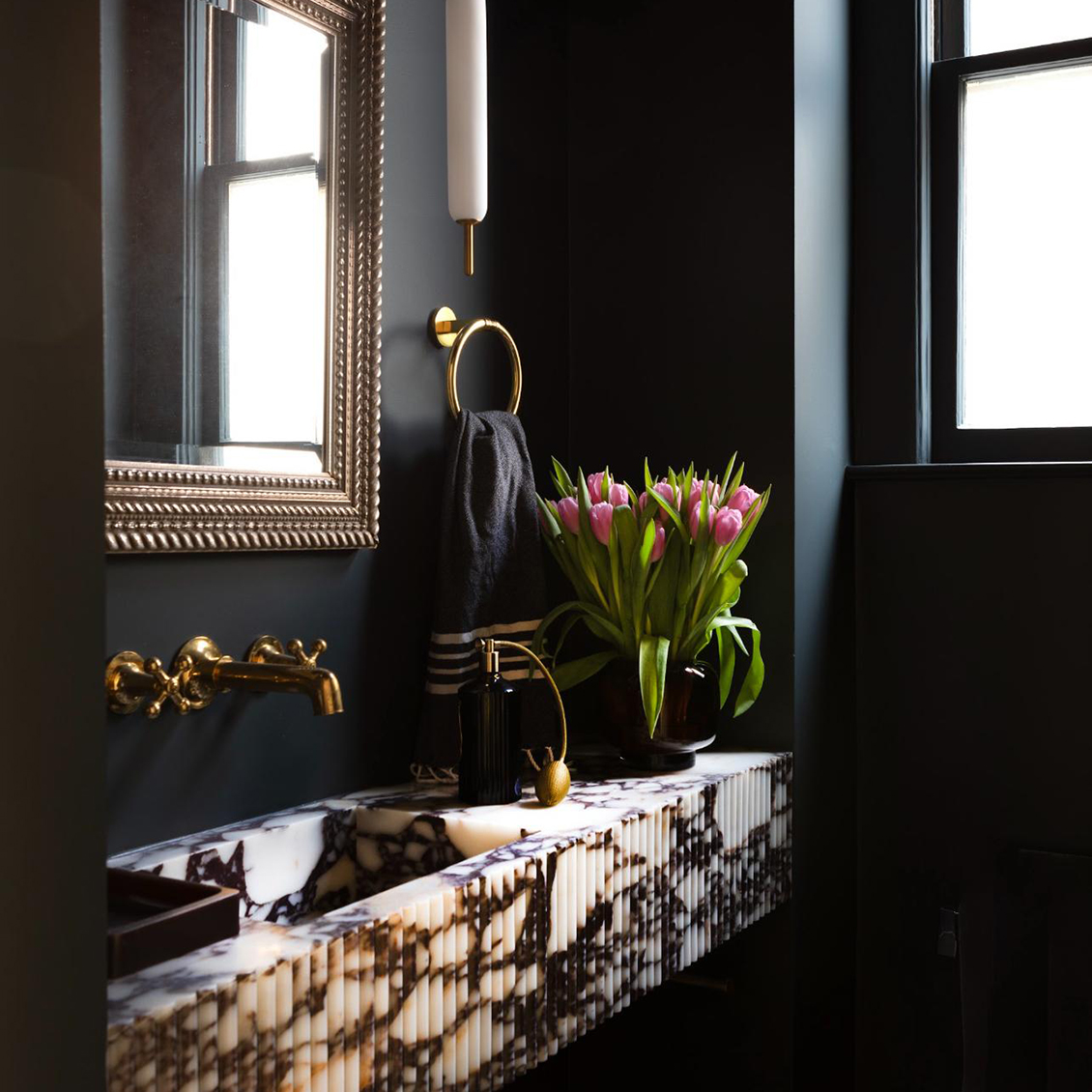

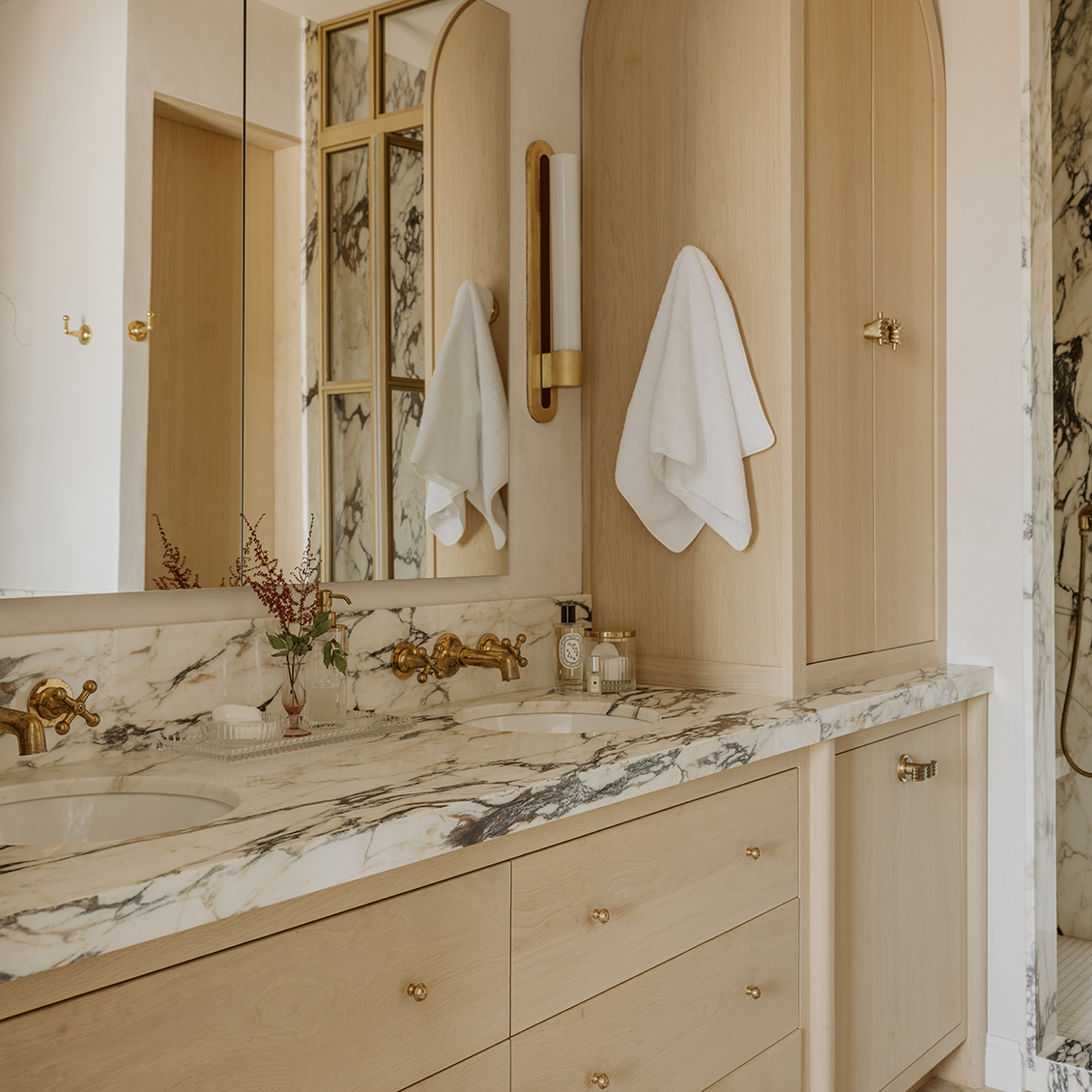

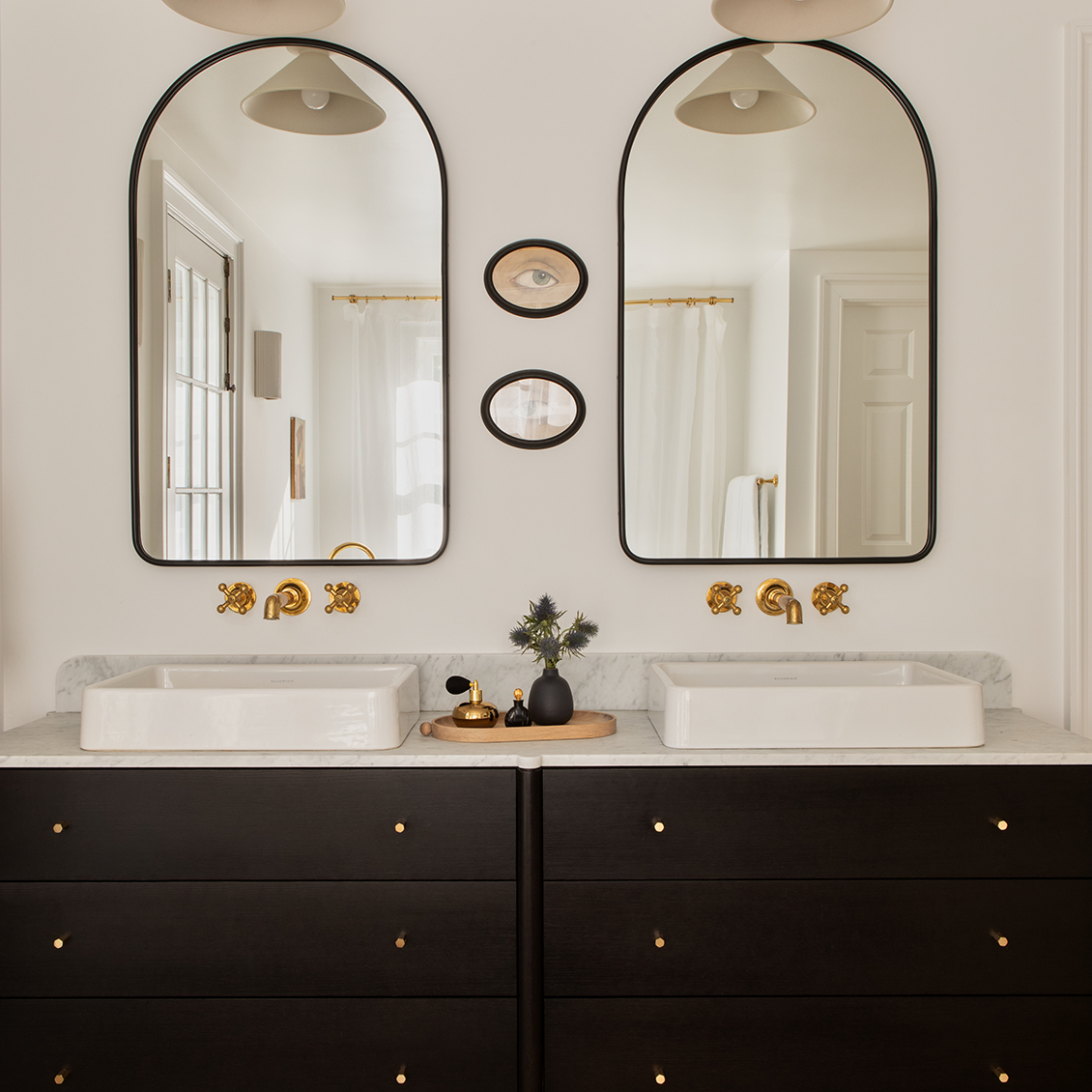

Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles

SKU
DSLS60
In stock
$909.00
Product Options Color / Finish Options
Wishlist Icon ADD TO PROJECTS FOLDER Add to Project Folder
Locations Icon Print Page
Locations Icon Find a Showroom

Color / Finish Options

  • Architectural Bronze Architectural Bronze
  • Burnished Nickel Burnished Nickel
  • Chrome Chrome
  • Gold Gold
  • Matte Gold Matte Gold
  • Matte Nickel Matte Nickel
  • Nickel Nickel
  • Pewter Pewter
  • Shiny Copper Shiny Copper
  • Unlacquered Brass Unlacquered Brass
  • Vintage Brass Vintage Brass

+

{"54572":{"price":"$1,250.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Antique Brass, 2.2gpm","price_gtm":"1250.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Antique Brass","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-06545-58599","default":false,"id":"54572"},"54568":{"price":"$1,250.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Antique Copper, 2.2gpm","price_gtm":"1250.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Antique Copper","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-58745-21184","default":false,"id":"54568"},"54581":{"price":"$1,210.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Burnished Brass, 2.2gpm","price_gtm":"1210.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Burnished Brass","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-03621-84403","default":false,"id":"54581"},"54578":{"price":"$1,200.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Burnished Nickel, 2.2gpm","price_gtm":"1200.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Burnished Nickel","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-15958-80503","default":false,"id":"54578"},"54579":{"price":"$1,300.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Carbon, 2.2gpm","price_gtm":"1300.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Carbon","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-84376-22423","default":false,"id":"54579"},"54574":{"price":"$909.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Chrome, 2.2gpm","price_gtm":"909.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Chrome","for_sale":0,"line_type":"Stock Inventory Item","instock":true,"availability_message":null,"sku":"07-78992-66282","default":false,"id":"54574"},"54584":{"price":"$2,500.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Gold, 2.2gpm","price_gtm":"2500.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Gold","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-30126-35855","default":false,"id":"54584"},"54576":{"price":"$2,510.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Matte Gold, 2.2gpm","price_gtm":"2510.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Matte Gold","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-93846-68191","default":false,"id":"54576"},"54573":{"price":"$1,045.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Matte Nickel, 2.2gpm","price_gtm":"1045.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Matte Nickel","for_sale":0,"line_type":"Stock Inventory Item","instock":true,"availability_message":null,"sku":"07-48853-46364","default":false,"id":"54573"},"54575":{"price":"$1,000.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Nickel, 2.2gpm","price_gtm":"1000.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Nickel","for_sale":0,"line_type":"Stock Inventory Item","instock":true,"availability_message":null,"sku":"07-37233-77379","default":true,"id":"54575"},"54580":{"price":"$1,250.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Pewter, 2.2gpm","price_gtm":"1250.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Pewter","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-30962-84785","default":false,"id":"54580"},"54583":{"price":"$1,250.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Shadow, 2.2gpm","price_gtm":"1250.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Shadow","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-87861-60520","default":false,"id":"54583"},"54570":{"price":"$1,250.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Shiny Copper, 2.2gpm","price_gtm":"1250.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Shiny Copper","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-49330-70771","default":false,"id":"54570"},"54577":{"price":"$1,250.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Sovereign, 2.2gpm","price_gtm":"1250.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Sovereign","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-52044-58159","default":false,"id":"54577"},"54571":{"price":"$1,018.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Unlacquered Brass, 2.2gpm","price_gtm":"1018.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Unlacquered Brass","for_sale":0,"line_type":"Stock Inventory Item","instock":true,"availability_message":null,"sku":"07-46657-48146","default":false,"id":"54571"},"54582":{"price":"$1,250.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Vintage Brass, 2.2gpm","price_gtm":"1250.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Vintage Brass","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-61482-16665","default":false,"id":"54582"},"54569":{"price":"$1,250.00","price_unit":"Each","name":"Dash Three Hole Wall Mounted Lavatory Faucet with Metal Cross Handles in Architectural Bronze","price_gtm":"1250.00","dimension11":"No","brand":"Heritage","dimension12":"Bath","dimension13":"Faucets","category":"Fittings & Fixtures","family-name":"Dash","variant":"Metal Finish:Architectural Bronze","for_sale":0,"line_type":"Special Order","instock":true,"availability_message":null,"sku":"07-34104-68574","default":false,"id":"54569"}}
{"attributes":{"143":{"id":"143","code":"metal_finish","label":"Metal Finish","options":[{"id":"3","label":"Chrome","products":["54574"],"for_sale":0,"price":909},{"id":"5","label":"Nickel","products":["54575"],"for_sale":0,"price":1000},{"id":"19","label":"Unlacquered Brass","products":["54571"],"for_sale":0,"price":1018},{"id":"6","label":"Matte Nickel","products":["54573"],"for_sale":0,"price":1045},{"id":"406","label":"Burnished Nickel","products":["54578"],"for_sale":0,"price":1200},{"id":"495","label":"Burnished Brass","products":["54581"],"for_sale":0,"price":1210},{"id":"14","label":"Antique Brass","products":["54572"],"for_sale":0,"price":1250},{"id":"13","label":"Antique Copper","products":["54568"],"for_sale":0,"price":1250},{"id":"8","label":"Architectural Bronze","products":["54569"],"for_sale":0,"price":1250},{"id":"450","label":"Pewter","products":["54580"],"for_sale":0,"price":1250},{"id":"2461","label":"Shadow","products":["54583"],"for_sale":0,"price":1250},{"id":"17","label":"Shiny Copper","products":["54570"],"for_sale":0,"price":1250},{"id":"18","label":"Sovereign","products":["54577"],"for_sale":0,"price":1250},{"id":"672","label":"Vintage Brass","products":["54582"],"for_sale":0,"price":1250},{"id":"249","label":"Carbon","products":["54579"],"for_sale":0,"price":1300},{"id":"15","label":"Gold","products":["54584"],"for_sale":0,"price":2500},{"id":"16","label":"Matte Gold","products":["54576"],"for_sale":0,"price":2510}],"position":"0"}},"optionProducts":{"143":{"16":["54576"],"17":["54570"],"13":["54568"],"15":["54584"],"2461":["54583"],"14":["54572"],"8":["54569"],"3":["54574"],"450":["54580"],"672":["54582"],"249":["54579"],"5":["54575"],"19":["54571"],"406":["54578"],"6":["54573"],"18":["54577"],"495":["54581"]}},"template":"$<%- data.price %>","optionPrices":{"54572":{"oldPrice":{"amount":"1250"},"basePrice":{"amount":"1250"},"finalPrice":{"amount":"1250"}},"54568":{"oldPrice":{"amount":"1250"},"basePrice":{"amount":"1250"},"finalPrice":{"amount":"1250"}},"54581":{"oldPrice":{"amount":"1210"},"basePrice":{"amount":"1210"},"finalPrice":{"amount":"1210"}},"54578":{"oldPrice":{"amount":"1200"},"basePrice":{"amount":"1200"},"finalPrice":{"amount":"1200"}},"54579":{"oldPrice":{"amount":"1300"},"basePrice":{"amount":"1300"},"finalPrice":{"amount":"1300"}},"54574":{"oldPrice":{"amount":"909"},"basePrice":{"amount":"909"},"finalPrice":{"amount":"909"}},"54584":{"oldPrice":{"amount":"2500"},"basePrice":{"amount":"2500"},"finalPrice":{"amount":"2500"}},"54576":{"oldPrice":{"amount":"2510"},"basePrice":{"amount":"2510"},"finalPrice":{"amount":"2510"}},"54573":{"oldPrice":{"amount":"1045"},"basePrice":{"amount":"1045"},"finalPrice":{"amount":"1045"}},"54575":{"oldPrice":{"amount":"1000"},"basePrice":{"amount":"1000"},"finalPrice":{"amount":"1000"}},"54580":{"oldPrice":{"amount":"1250"},"basePrice":{"amount":"1250"},"finalPrice":{"amount":"1250"}},"54583":{"oldPrice":{"amount":"1250"},"basePrice":{"amount":"1250"},"finalPrice":{"amount":"1250"}},"54570":{"oldPrice":{"amount":"1250"},"basePrice":{"amount":"1250"},"finalPrice":{"amount":"1250"}},"54577":{"oldPrice":{"amount":"1250"},"basePrice":{"amount":"1250"},"finalPrice":{"amount":"1250"}},"54571":{"oldPrice":{"amount":"1018"},"basePrice":{"amount":"1018"},"finalPrice":{"amount":"1018"}},"54582":{"oldPrice":{"amount":"1250"},"basePrice":{"amount":"1250"},"finalPrice":{"amount":"1250"}},"54569":{"oldPrice":{"amount":"1250"},"basePrice":{"amount":"1250"},"finalPrice":{"amount":"1250"}}},"prices":{"oldPrice":{"amount":"909"},"basePrice":{"amount":"909"},"finalPrice":{"amount":"909"}},"productId":"55201","chooseText":"Choose an Option","images":[],"index":{"54572":{"143":"14"},"54568":{"143":"13"},"54581":{"143":"495"},"54578":{"143":"406"},"54579":{"143":"249"},"54574":{"143":"3"},"54584":{"143":"15"},"54576":{"143":"16"},"54573":{"143":"6"},"54575":{"143":"5"},"54580":{"143":"450"},"54583":{"143":"2461"},"54570":{"143":"17"},"54577":{"143":"18"},"54571":{"143":"19"},"54582":{"143":"672"},"54569":{"143":"8"}}}
Request Information

Item Details

  • Dash COLLECTION

    A blend of art and function, Dash pays homage to design elements of the 1930s with pared-down shapes, softened curves and minimal details.

  • FEATURES
    • Metal Cross Handle
    • Includes European push touch style drain.
    • Stocked in Nickel, Chrome, Unlacquered Brass, and Matte Nickel finishes
    • Standard flow rate is 2.2gpm (8.3 L/min) and State of California requires 1.2gpm(4.5 L/min). Also available in other flow options. Contact a sales associate for details.
    VIEW FULL COLLECTION

Technical Documents

Technical Details

    • Suggested Application: Bath
    • Escutcheon Primary Material: Brass
    • Hot Limit Safety Stop: No
    • Spout Swivel: No
    • Drain Assembly Materials: Brass, Rubber, Plastic
    • Flow Restriction Options: 1.75, 1.5, 1.2, 1.0
    • Water Pressure Minimum: 20.00 PSI
    • Spout Reach: 7.25 INCH
    • Drain Hole Diameter: 1.75 INCH
    • Drain Depth Minimum: 0.38 INCH
    • Drain Depth Maximum: 2.63 INCH
    • Water Pressure Maximum: 85.00 PSI
    • Water Pressure Recommended: 45.00 PSI
    • Control Valve Rough-in Depth Minimum: 5.50 INCH
    • Inlet Connection Size: 0.50 INCH
    • Handle Spread Minimum: 8.00 INCH
    • Handle Spread Maximum: 8.00 INCH
    • Number of Handles: Two
    • Installation Requirements or Notes: Product Requires Universal Lavatory Wall Mounted Rough Valve [GULV27]. Valve Sold Separately.
    • Concealed / Exposed: Concealed
    • Drain Style: Push-Touch
    • Inlet Connection Type: Male NPT
    • Handle Turn Angle: Quarter Turn
    • Flow Rate: 2.2gpm
    • Leadtime: 20
